Submersible Sewage Pump – Heavy Duty Mud & Dewatering Pump
Product Overview
Our Heavy-Duty Submersible Sewage Pumps are rugged, non-clogging units specifically engineered to transport heavily contaminated wastewater, industrial effluents and solids-laden fluids without blockage. Combining a robust Cast Iron (CI) motor body with selective Stainless-Steel construction, these pumps are built to survive continuous immersion in harsh environments. Featuring a powerful internal impeller and dual mechanical seals, they provide absolute reliability for municipal lift stations, basement drainage, and industrial dewatering where failure is not an option.
Key Features & Benefits
Advanced Solid Handling: Effortlessly passes stringy materials, debris, and suspended slurries up to 25mm in size without clogging.
Dual Mechanical Seals: Provides double protection for the motor core against liquid ingress, drastically extending pump operational life in abrasive fluids.
Premium Metallurgy: Engineered with an ultra-durable SS 316 Shaft and Cast Iron (CI) impeller to withstand high mechanical stress and minimize wear.
Efficient Heat Dissipation: Heavy-duty Cast Iron motor housing features built-in cooling fins to prevent overheating during prolonged, heavy-duty pumping cycles.
Automatic Float Switch: Includes a durable integrated float switch for reliable, automated on/off operation based on rising liquid levels.
Technical Specifications
Pump Body Material: Cast Iron (CI) / Stainless Steel
Impeller Type: Non-Clog CI Impeller
Motor Body: Cast Iron (CI) with integrated cooling fins
Shaft Material: High-Grade SS 316
Sealing Mechanism: Dual Mechanical Seals
Maximum Solid Passage Size: Up to 25mm (Model dependent)
Power Options: Available in Single Phase (SP) and Three Phase (TP), 50Hz
Common Applications
Commercial & Residential: Basement drainage, rainwater harvesting overflow, and domestic septic tank clearing.
Industrial Utilities: Transfer of heavy chemical effluents, factory floor wash-downs, and muddy trench dewatering.
Municipal Infrastructure: Sewage lift stations, storm-water handling, and public drainage network maintenance.
Product Info & Selection Guide
1. Understanding the Duty Point
When selecting a model from the performance chart, ensure your system's calculated Total Dynamic Head (TDH), which includes the vertical lift height plus friction losses from bends and pipe length falls within the populated zones of the table.
Operating a sewage pump at a head lower than its minimum design limit can cause the pump to handle too much water, leading to motor overloading.
For continuous, worry-free operation, choose a model where your day-to-day requirements sit comfortably in the middle of its performance curve.
2. Heavy-Duty Impeller Design & Solid Handling
Unlike standard water pumps, our sewage series features a specialized, recessed non-clogging impeller. This creates a vortex action that allows raw sewage, fibrous materials, and mud slurries to pass through the casing without wrapping around the shaft.
Models XSWP-50 to XSWP-100: Perfect for semi-dirty water, storm-water drainage, and light suspended solids up to 15mm.
Models XSWP-150 to XSWP-1000: Full 25mm (1 inch) solid clearance, making them ideal for heavy commercial sewage, commercial kitchen waste, and industrial effluents.
3. Smart Automation via Integrated Float Switch

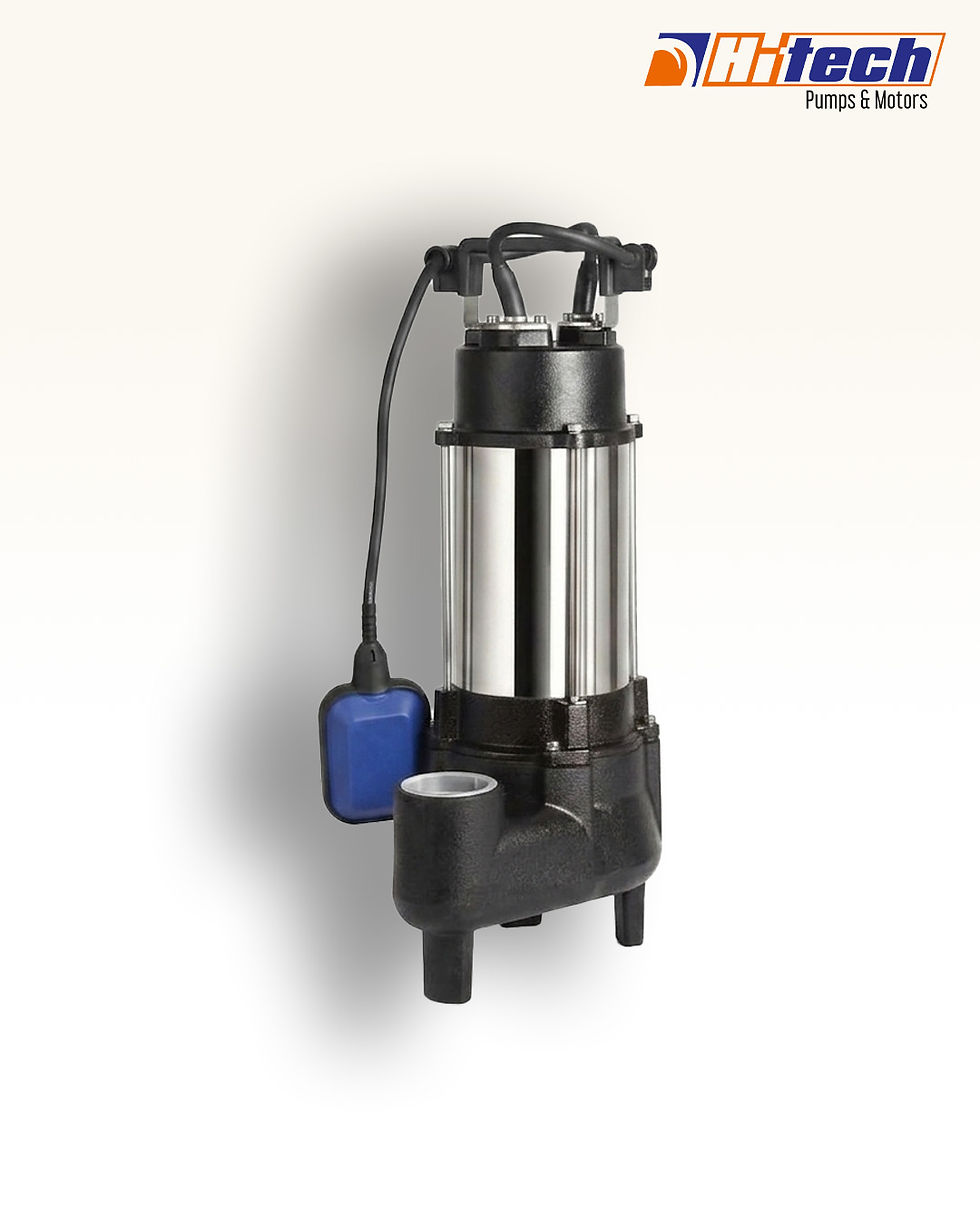

Our single-phase models come equipped with a heavy-duty, built-in automatic float switch (as shown in the product image).
How it works: As the wastewater level rises in your collection pit or basement tank, the float rises to a vertical position, automatically triggering the pump to start. Once the fluid level drops to a safe minimum, the float drops, immediately shutting off the motor.
The Benefit: This prevents the pump from "dry running" (operating without liquid), which is the number one cause of mechanical seal failure in submersible units.
4. Crucial Installation & Care Notes
Guide Rail System Compatibility: The larger flanged models (3" and 4" delivery sizes) are perfectly suited for standard duck-foot guide rail assemblies, allowing easy lowering and lifting from deep sewage pits without requiring manual entry.
Sump Pit Dimensions: Ensure your collection pit is wide enough to allow the float switch to move completely freely up and down without getting trapped against the concrete walls.
Pre-Filter Recommendations: While the pump handles up to 25mm solids effortlessly, we recommend installing a basic trash screen at the pit inlet to block oversized debris like large rocks, metal pieces, or heavy plastics that could damage the cast iron internal casing.
