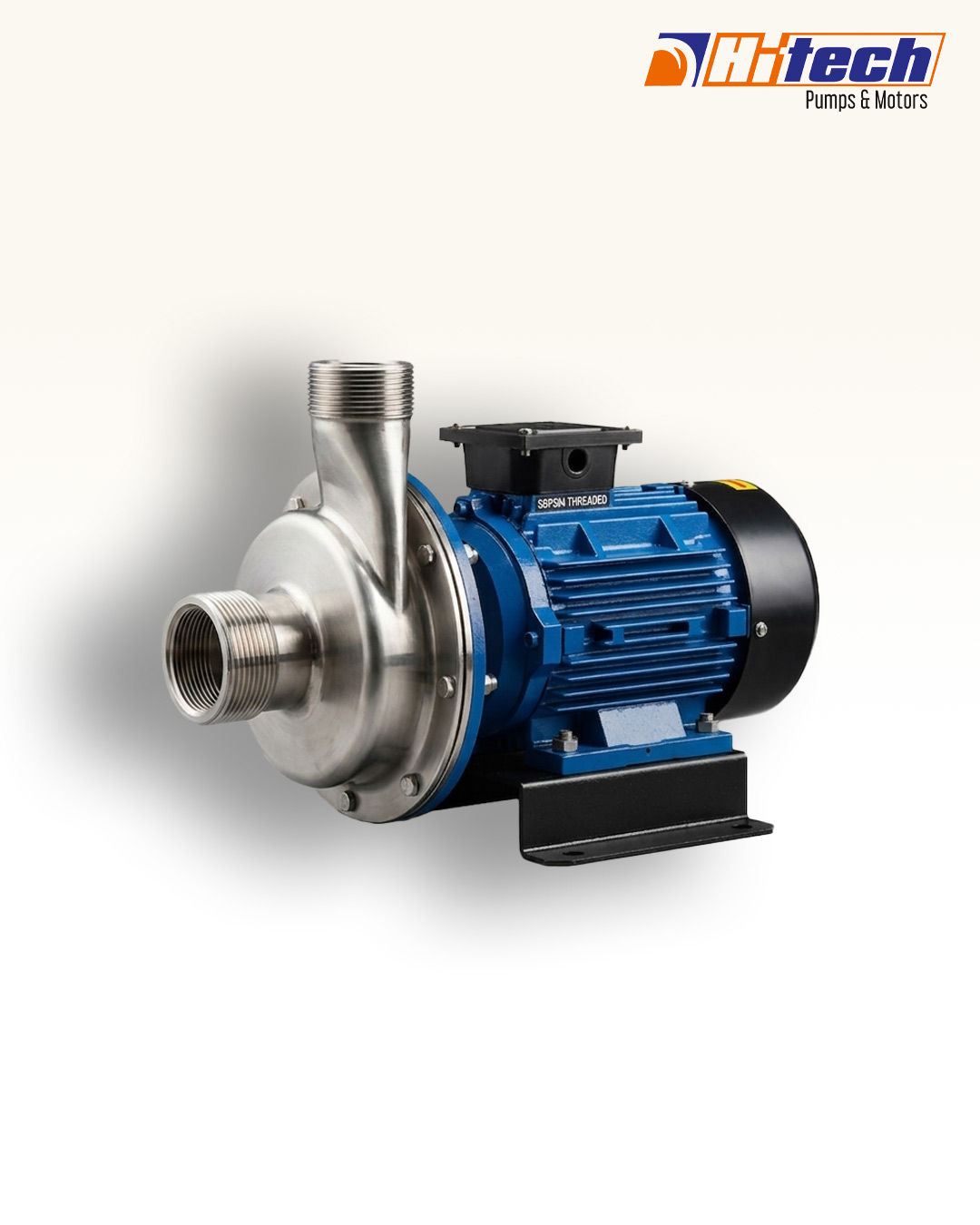

SS 316 Centrifugal Pump – High-Grade Corrosion Resistant
Product Overview
Our Stainless Steel 316 Centrifugal Pumps are designed for the most demanding fluid handling tasks. Manufactured from high-quality CF8M (SS 316) investment castings, these pumps offer exceptional resistance to pitting and crevice corrosion. Whether you are handling volatile chemicals, saline solutions, or food-grade liquids, these pumps provide a hygienic and durable solution with high hydraulic efficiency.
Key Features
Superior Metallurgy: All wetted parts are made of SS 316, ensuring longevity in aggressive environments.
Hygienic Design: Smooth internal surfaces prevent bacterial growth, making it suitable for dairy and beverage industries.
High Efficiency Impeller: Semi-open or closed impeller options designed for maximum flow with minimum power consumption.
Versatile Sealing: Fitted with high-quality Mechanical Seals (Viton/Teflon options) to prevent leakage of hazardous fluids.
Available Nozzle Variants
To fit your specific piping requirements, this pump is available in three primary connection types:
Connection Type | Best For | Benefit |
Flanged (ANSI/DIN) | Industrial & Chemical Plants | Maximum leak protection and easy removal for maintenance. |
Threaded (BSP/NPT) | Compact Skids & Water Treatment | Simple installation into standard threaded piping systems. |
Technical Specifications
MOC (Material of Construction): Stainless Steel 316 (CF8M)
Max Flow Rate: 1050 LPM
Max Head: 54 Meters
Motor Rating: Available from 0.5 HP to 5 HP
Temperature Range: -20°C to 120°C (with appropriate seals)
Inlet/Outlet Sizes: 12 x 12 to 80 x 80
Common Applications
Pharmaceuticals: Handling of demineralized water and bulk drugs.
Chemical Industry: Transfer of acids, alkalis, and solvents.
Food & Beverage: Pumping juices, milk, wine, and syrups.
Water Treatment: RO plants and desalination systems.

Product Information & Selection Guide
Choosing the right pump requires matching your system's piping setup with your specific flow and head requirements. Our Stainless Steel 316 Centrifugal Pumps are available in multiple configurations to fit seamlessly into your existing line.
Review the performance guidelines above to select the ideal unit for your application.
Standard Operating Parameters
Operating Speed: 2900 RPM (High Head performance) / 1440 RPM (Low shear/viscous applications)
Supply Voltage: Available in 3-Phase (415V) and 1-Phase (220V), 50Hz standard.
Impeller Type: Semi-Open (handles minor solids/slurries without clogging) or Closed (maximum hydraulic efficiency for clean fluids).
Mechanical Seals: Fitted with chemical-resistant Viton or Teflon (PTFE) face seals as standard to prevent hazardous leaks.
Application & Selection Assistance
Operating a centrifugal pump outside its optimum efficiency window can lead to cavitation, premature seal failure, or motor overloading. If your duty point falls between two models on the chart, or if you are pumping a liquid with a viscosity higher than water, please contact our Ahmedabad application engineering desk with your flow and head requirements for a custom configuration.
